1M Metric Female Hose Fittings

METRIC MALE DOUBLE USE FOR 60° CONE SEAT ORBONDED SEAL



Model:1M

Own Brand:Gemco

Executive Standard:Parker Standard

Optional Material:Carbon steel, 304, 316

Thread Form:

Stripping Form:NO-SKIVE

Fitting Advantage:Simple and easy to operate, reduce labor costs

  • Product Details

GEMCO is a hydraulic system products factory integrating R&D, production, wholesale and sales. It provides the production, testing and delivery of high pressure ball valves hydraulic hoses assembly, quick coupling, connectors, assemblies and other industrial partes for various hydraulic demand fields domestic and abroad. One-stop service with high quality and fast delivery is available.

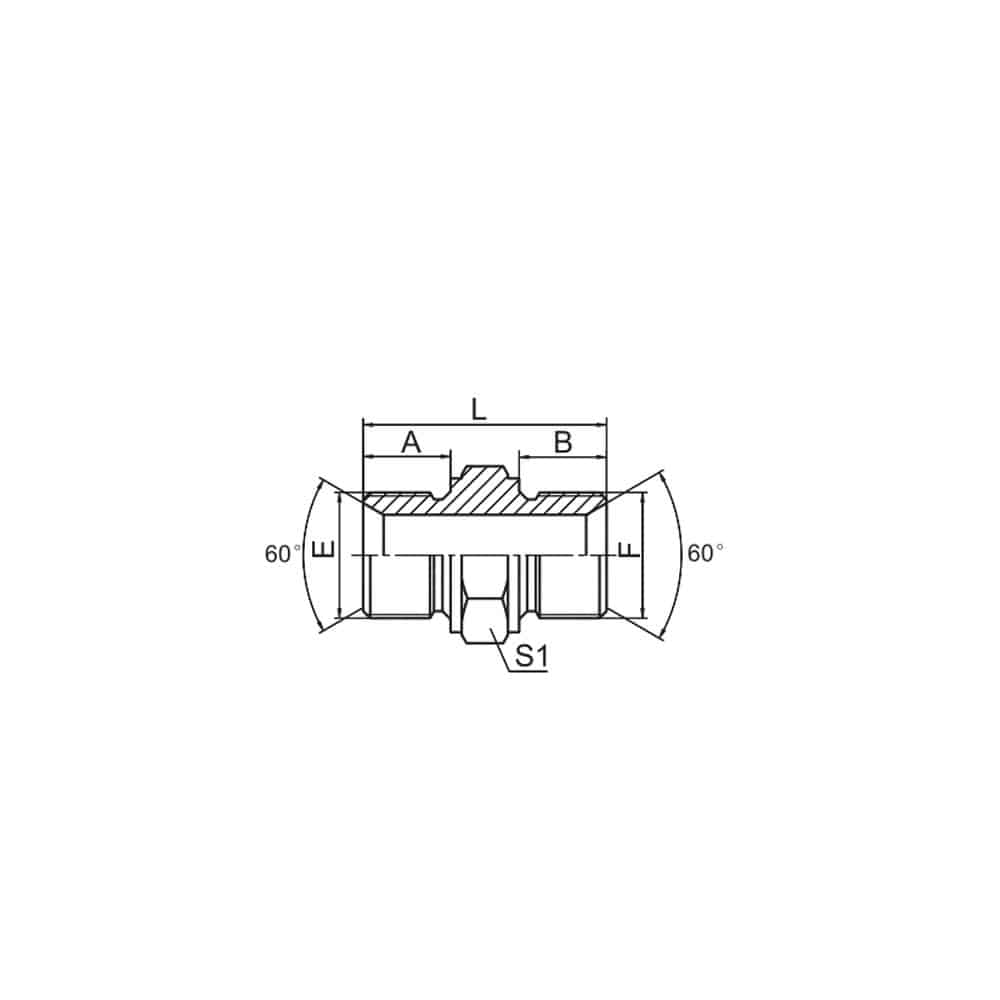

PART NO. THREAD DIMENSIONS
E                                                                                                         F A                                                                 B                                                               L                                                               S1
1M-10 M10X1 M10X1 8 8 24 14
1M-10-12 M10X1 M12X1.5 8 10 26 17
1M-12 M12X1.5 M12X1.5 10 10 28 17
1M-12-14 M12X1.5 M14X1.5 10 11 29 19
1M-14 M14X1.5 M14X1.5 11 11 30 19
1M-14-16 M14X1.5 M16X1.5 11 12 31 22
1M-16 M16X1.5 M16X1.5 12 12 32 22
1M-16-18 M16X1.5 M18X1.5 12 12 34 24
1M-18 M18X1.5 M18X1.5 12 12 34 24
1M-18-22 M18X1.5 M22X1.5 12 14 38 27
1M-20-22 M20X1.5 M22X1.5 14 14 38 27
1M-22 M22X1.5 M22X1.5 14 14 38 27
1M22-26 M22X1.5 M26X1.5 14 16 43 32
1M-22-27 M22X1.5 M27X2 14 16 43 32
1M-22-27D M22X1.5 M27X1.5 14 16 43 32
1M-26 M26X1.5 M26X1.5 16 16 45 32
1M-26-30 M26X1.5 M30X2 16 18 47 36
1M-26-30D M26X1.5 M30X1.5 16 18 47 36
1M-27 M27X2 M27X2 16 16 45 32
1M-27D M27X1.5 M27X1.5 16 16 45 32
1M-30 M30X2 M30X2 18 18 49 36
1M-30D M30X1.5 M30X1.5 18 18 49 36
