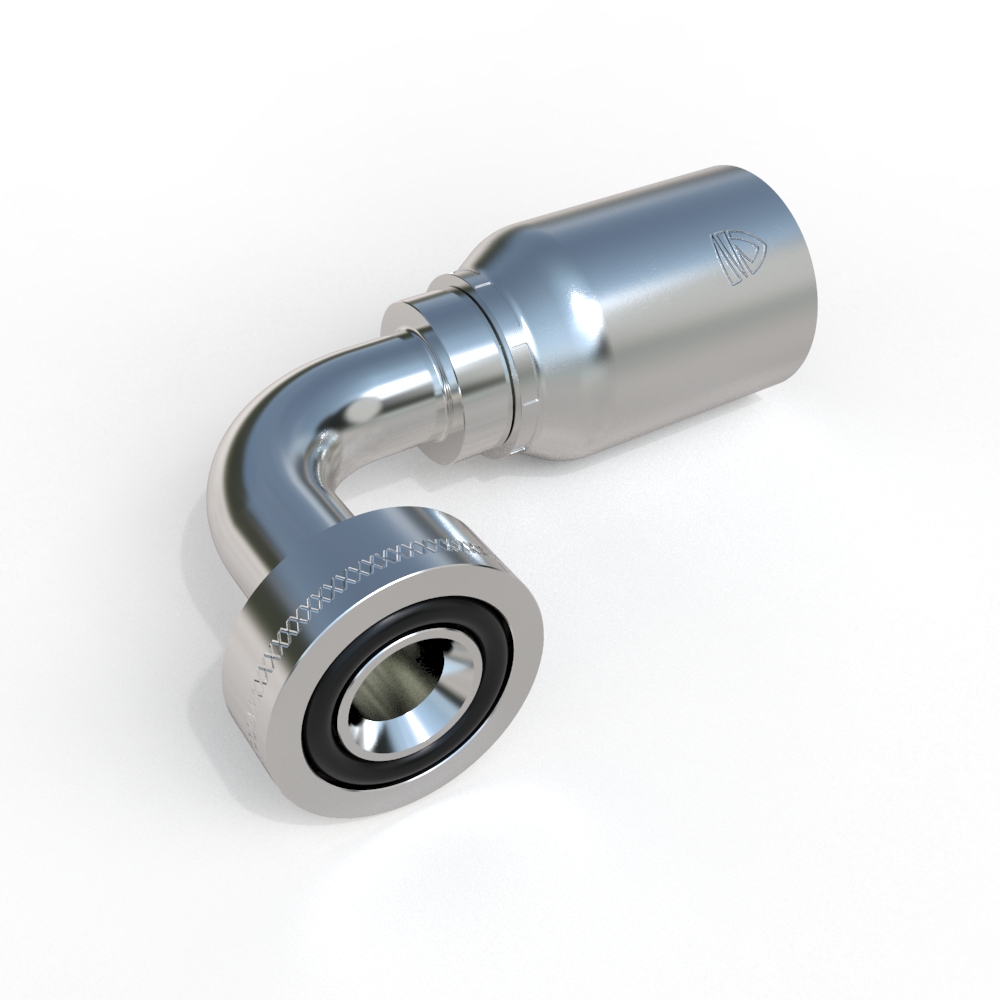

1XN79 Flange – 90˚ Elbow Hydraulic Fitting

1XN79 Flange – 90˚ Elbow Hydraulic Fitting
79Series Fittings

Caterpillar® Flange Head – 90˚ Elbow



Own Brand: Gemco

Model:1XN79

Executive Standard:Parker Standard

Optional Material:Carbon steel, 304, 316

Thread Form:Metric, US, Imperial

Stripping Form:NO-SKIVE

Fitting Advantage:Simple and easy to operate, reduce labor costs

Use with hose: SAE100 R13/15

  • Product Details

GEMCO is a hydraulic system products factory integrating R&D, production, wholesale and sales. It provides the production, testing and delivery of high pressure ball valves hydraulic hoses assembly, quick coupling, connectors, assemblies and other industrial partes for various hydraulic demand fields domestic and abroad. One-stop service with high quality and fast delivery is available.

Part
Number
Flange
inch
Hose I.D
inch
    A
inch
 A
 mm
E
inch
 E
 mm
  F
inch
B
inch
 B
 mm
1XN79-12-12
1XN79-16-16
1XN79-20-16
3/4
1
1-1/4
3/4
1
1-1/4
4.27
4.94
4.94
108
125
125
2.48
2.91
2.91
63
74
74
1-5/8
1-7/8
2-1/8
2.21
2.78
2.78
 56
71
71
1XN79-20-20
1XN79-24-24
1-1/4
1-1/2
1-1/4
1-1/2
6.31
7.50
160
191
3.70
4.16
94
106
2-1/8
2-1/2
3.63
4.46
92
113
